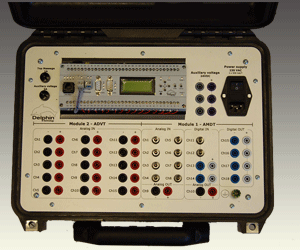

Data Logger for Mobile Measurement

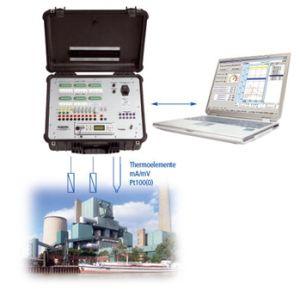

mobilus matavimai schema







  • Diagnostics and fault tracing made easy!
  • Cost savings for service engineers, maintenance technicians and
    commissioning engineers
  • Reduced downtimes through fast fault diagnosis
  • Simple sensor configuration
  • Many different uses

Companys's Inobalt mobile measurement case is a tried and test tool used by service engineers around the world. Service engineers, maintenance technicians and commissioning engineers, as well as test and inspection organizations, save on valuable working time.

Bespoke System:
The compact measurement and diagnostics system
is designed and equipped exactly according to individual customer requirements and measurement needs. A module for vibration monitoring, with a sampling rate of up to 20 kHz, is also available.

Analysis with ProfiSignal:
ProfiSignal
is a powerful software package that has a wide range of graphical analysis functions (Yt, XY, FFT and logic diagrams) - it is the ideal tool for maintaining control over plant and machinery.

Hardware technology:
An integrated ring memory with a 1 GB capacity can store up to 128 million records and requires no PC support. Internal signal conditioning enables the direct connection of sensor signals such as mV, mA, thermocouple or RTD sensors. The mobile measurement case can be connected directly to plant and machinery via a range of interfaces and ports (LAN; ModBus RTU+TCP, RS232, 422, 485; ProfiBus DP). These also enable information from control systems to be recorded in addition to the data from sensors.

Remote access:
If required the mobile measurement case can also be equipped with a GSM modem. Users then have direct access to online data via telecommunication networks.

Features and Benefits:

  • Custom made systems according to individual requirements.
  • Robust construction within an aluminum or strong plastic case.
  • A choice of 9 different I/O modules.
  • Independent 1 GB data storage (128 million records).
  • Recording of pre and post event data and integrated alarm procedures.
  • Direct sensor connection for mV, mA, RTD sensors and thermocouples.
  • Depending on module up to 20 kHz sample rate and with up to 24 bit resolution.
  • Separate plugs, terminals and connector attachments.
  • Remote linking via radio and internet (GSM).
