Infrared camera optris PI 400i / PI 450i

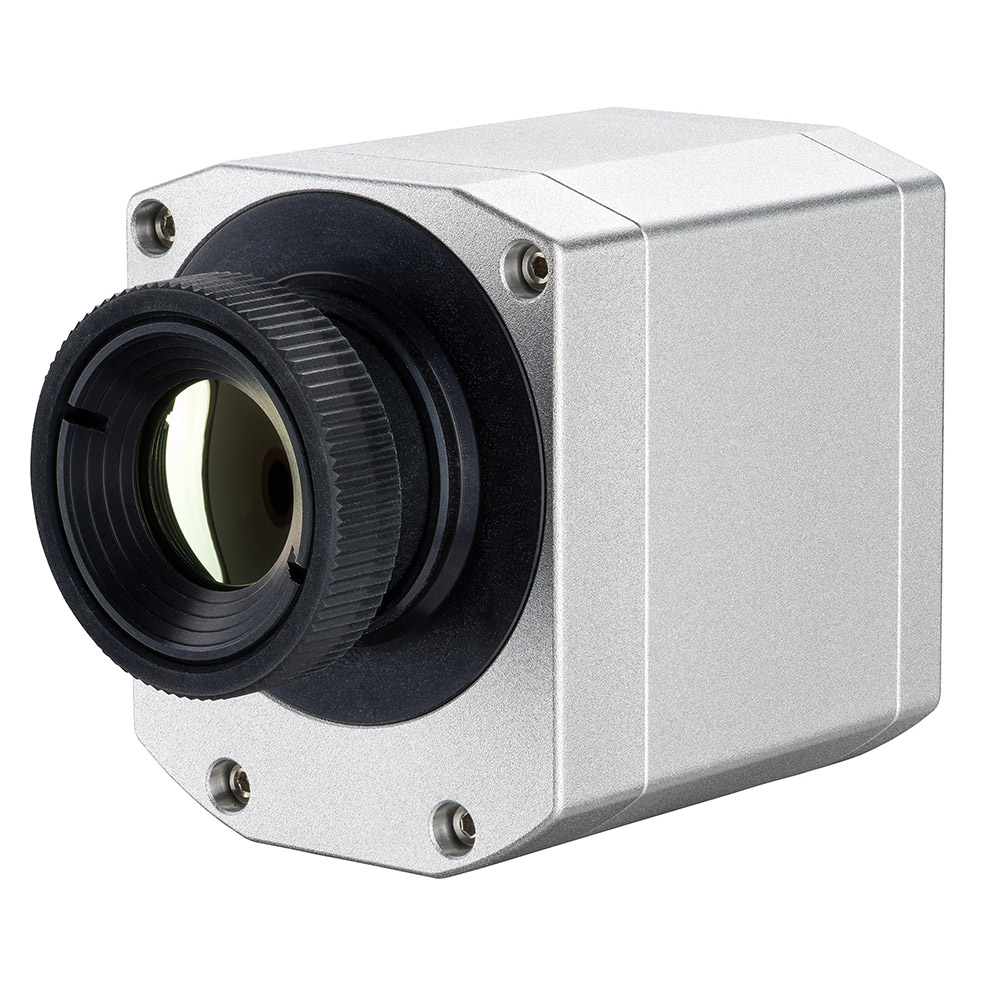

OPTPI4XXi right

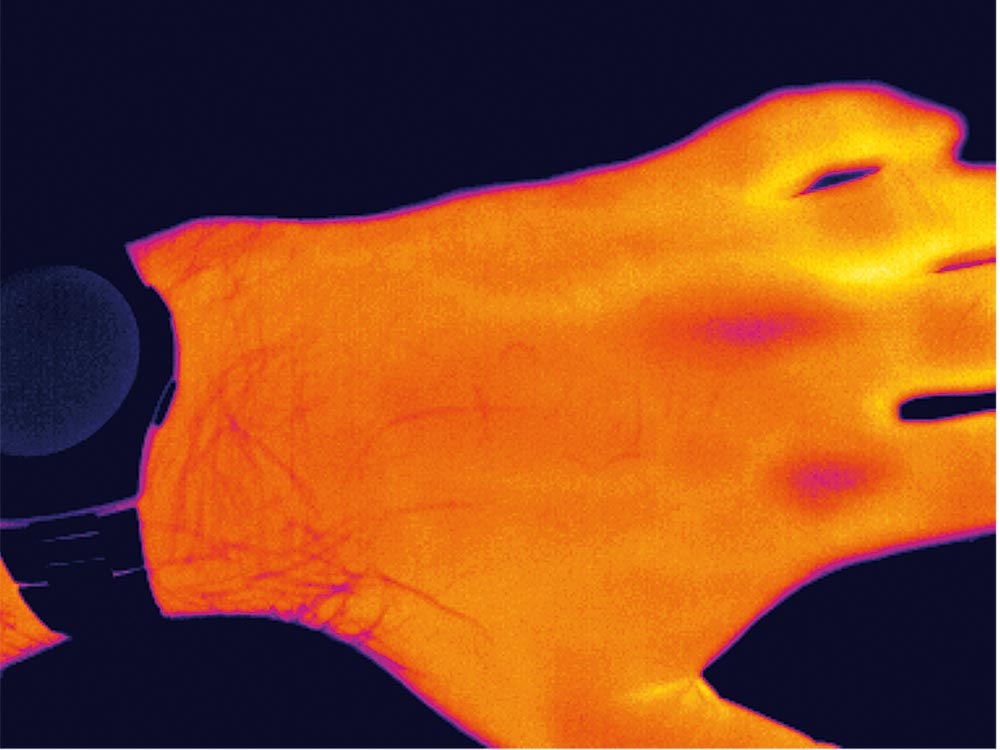

ir camera optris pi 400i hand 80mk

The infrared cameras optris PI 400i / PI 450i are the smallest thermographic cameras in their class. Being equipped with a measurement speed of 80 Hz and an optical resolution of 382 x 288 pixels they provide real-time thermographic images in high speed.

The IR camera PI 450i is, due to its thermal sensitivity of 40 mK, specifically suited for detection of slightest temperature differences, making it indispensable in quality control of products and in medical prevention.

The compact and high-performance infrared cameras offer a temperature range of -20°C up to 900°C, being optionally upgradeable up to 1500 °C. They can be delivered with exchangeable optics, industrial thermal imager equipment and they come with an extensive license-free thermography software package.


pdfPI 400i.pdf <> pdfPI 450i.pdf <> pdfInstrukcija.pdf

Important specifications

  • Temperature range: -20 °C to 900 °C
    (optional up to 1500 °C)
  • Spectral range: 8 to 14 µm
  • Frame rate: 80 Hz
  • Starting from 3950 €, software and I/O interface inclusive
Optinė rezoliucija 382 x 288 px
Kadrų fiksavimo dažnis 80 Hz
Tikslumas ±2oC arba ±2%
Matuojamos temperatūros diapozonai -20oC...100oC
  0oC...250oC
  150oC...900oC
Linzės 13o x 10o FOV/f=41 mm arba
  38o x 29o FOV/f=15 mm arba
  62o x 49o FOV/f=8 mm arba
  80o x 58o FOV/f=7.3 mm
Sąsaja su kompiuteriu USB 2.0
Procesų interfeisas (PIF) 0-10V įėjimas, diskretinis įėjimas (max 24V), 0-10V išėjimas
Aplinkos temperatūra 0oC - 50oC (PI 450: 0oC - 70oC)
Išmatavimai/apsaugos klasė 46 x 56 x 90 mm/IP67 (NEMA 4)
Svoris 320 g
Energijos tiekimas USB jungtimi
