Pressure sensors

Slegio jutiklis

Pressure monitoring in compressed air and gas systems helps to significantly reduce energy consumption. Only a few types of machines actually require compressed air with more than 6 bar overpressure. A reduction in the nominal pressure reduces both the power consumption and the leakage losses and increases the service life of the compressor. Electricity savings in the range of 6 - 8% can be achieved by a reduction of the nominal pressure by only 1 bar.

The smaller the pressure drop across the filter, the less high the nominal pressure must be set. If the pressure drop across the filters is greater than 0.3 bar, the filters should be replaced. Our proven differential pressure sensors and pressure gauges are ideal to monitor those figures continuously.


 Slegio jutikliai.pdf



Digital pressure sensor DPS 16
Measuring range: 0...16 bar
Signal:RS485
Process connection: G1/2"

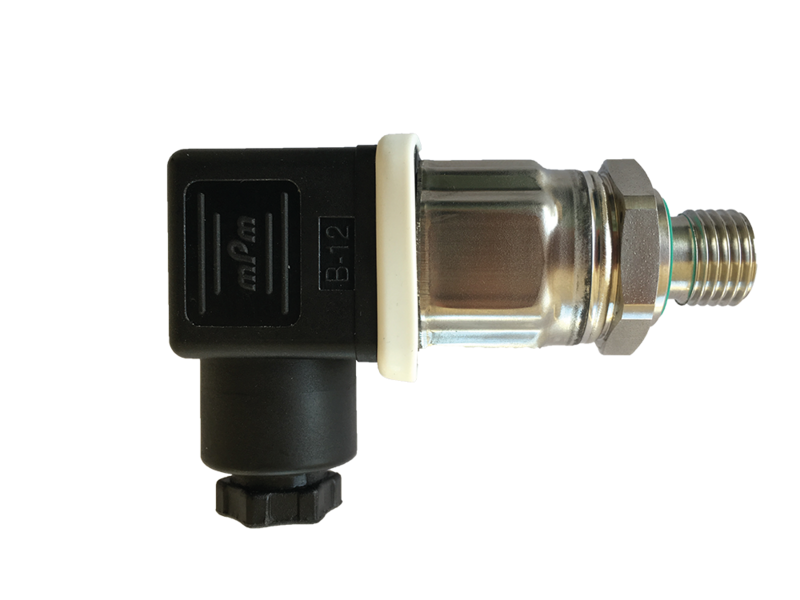

Standard pressure sensor CS 10 and CS 16
 Standard pressure sensor CS 10 and CS 16 for pressure ratio 0...10 and 0...16 bar measures with accuracy of full scale 1%. For more exactly measurement in the same pressure ratio we offer the CS 10/ CS 16 sensors with accuracy of full scale 0,5%.
Ouptup signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC

Standard pressure sensor CS 40
 Standard pressure sensor CS 40 for pressure ratio 0...40 bar measures with accuracy of full scale 1%. For more exactly measurement in the same pressure ratio we offer the CS 40 sensor with accuracy of full scale 0,5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC


Standard pressure sensor CS 1.6 absolute
 Standard pressure sensor CS 1.6 for pressure ratio 0...1.6 bar measures with accuracy of full scale 0,5 %.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC

Standard pressure sensor CS 100
 Standard pressure sensor CS 100 for pressure ratio 0...100 bar measures with accuracy of full scale 0,5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC


Standard pressure senor CS 250
 Standard pressure sensor CS 250 for pressure ratio 0...250 bar measures with accuracy of full scale 0,5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC


Standard pressure sensor CS 400
 Standard pressure sensor CS 400 for pressure ratio 0...400 bar measures with accuracy of full scale 0,5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC


Precision pressure sensor CS -1...+15
 Precision pressure sensor CS -1...+15 for pressure ratio -1...+15 bar measures with accuracy of full scale 0.5%.
Output signal: 4...20 mA, 2-Wire
Power supply: 8...30 VDC
