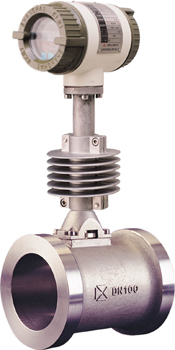

Steam flow meter

STEAM, GAS, LIQUID
With IP65 local LCD display (Remote version IP67)
+/- 1% Accuracy Liquid
+/- 1.5% Accuracy Gas
Wafer fit design
For pipes from DN15 to DN1200 (15mm - 1200 mm)
304 Stainless steel construction
24 VDC and/or 3.6v Lithium Battery Powered (5yr Life)
Output Signal: Pulse, 4-20mA, Hart, Modbus RS485
Temp Range: -40 - 250 oC (Standard); +100 - 350 oC (Exteneded range)
Pressure: 16 bar (Standard); 40 or 60 bar (on request)
